CAT5e F/UTP LAN Cable

Quote Now

Specification

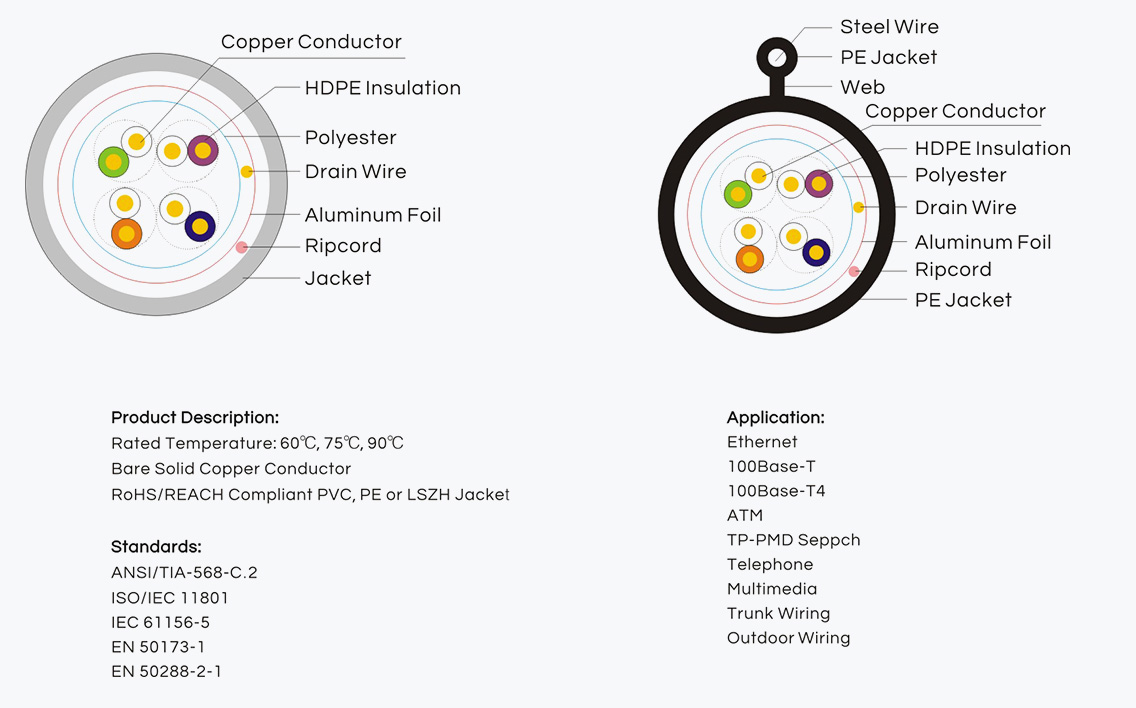

Cable Construction (FTP CAT5e/AERIAL FTP CAT5e)

Model	Construction	Conductor	Insulation	No. of Pairs	Shield	O.D.	Jacket Type	Remark
F5V/F5E/F5ZH	FTP	24AWG	1.0mm	4	AL Foil	6.3mm	PVC/PE/LSZH	100MHz
F5EM	AERIAL FTP	24AWG	1.0mm	4	AL Foil	6.4 x 10.0mm	PE	100MHz

Electrical Characteristics

Frequency MHz	Impedance Ohm	Return Loss dB	Attenuation dB/100m	NEXT dB/100m	ELFEXT dB/100m	PS NEXT dB/100m	PS ELFEXT dB/100m	Velocity of Propagation
1	100±15	20.0	2.0	65.3	63.8	62.3	60.8	65%
4		23.0	4.1	56.3	51.7	53.3	48.7
8		24.5	5.8	51.8	45.7	48.8	42.7
10		25.0	6.5	50.3	43.8	47.3	40.8
16		25.0	8.2	47.3	39.7	44.2	36.7
20		25.0	9.3	45.8	37.7	42.8	34.7
25		24.3	10.4	44.3	35.8	41.3	32.8
31.25		23.6	11.6	42.9	33.9	39.9	30.9
62.5		21.5	17.0	38.4	27.8	35.4	24.8
100		20.1	22.0	35.3	23.8	32.3	20.8
155	100±18	18.8	28.1	32.4	20.2	29.4	17.2
200	100±18	18.0	32.4	30.8	18.0	27.8	15.0
310	100±22	16.7	41.8	27.9	14.2	24.9	11.2
350	100±22	16.3	44.9	27.1	13.1	24.1	10.1

Certificates & Honor

Our products have UL, ETL, JIS, CE, CPR, RoHS and REACH certification

Get An Inquiry

Company Profile

Zhejiang CommSpace Cable Co., Ltd.

As CAT5e F/UTP LAN Cable Manufacturers, Zhejiang CommSpace Cable Co., Ltd. was established in 2001 with total 66,600㎡ manufacturing area, located in Zhuji city, Zhejiang Province, close to Ningbo and Shanghai Seaport, near Hangzhou International Airport.

CommSpace Cable is a world-class manufacturer specializes in high performance and high quality coaxial cable, data cable, speaker cable, alarm cable, telephone cable, etc. We are ISO9001, ISO14001 and JIS certified enterprise. We have 12 high pressure gas injected physical foaming production lines, 330 high speed braiding machines and 12 thermoplastic jacket extrusion production lines. The annual production capacity exceeds 350,000 kms.

CommSpace Cable focuses on compliance and applying technical innovation and continuous improvement to the products that meet various international standards. As Custom CAT5e F/UTP LAN Cable Factory, our CAT5e F/UTP LAN Cable have UL, ETL, JIS, CE, CPR, RoHS and REACH certification and have been exported to more than 90 countries and regions in the fields of Satellite TV (DISH TV/DTH), DTV, CCTV, CATV, MATV, IPTV, SMATV, LTE, broadband network and wireless network.

Focus on Quality and Keep Innovating

CommSpace has a strong technical force and R&D team composed of more than 20 professional technicians. Benefiting from the comprehensive mastery of cable production technology, we have the ability to consider more for our customers and better balance the relationship between product value and procurement cost. CommSpace Cable is committed to optimizing the electrical, mechanical and environmental performance of products, pay special attention to providing environmental protection products, to improve the safety, reliability and stability of products.

CommSpace has implemented a very strict Quality Management System. As World-class China custom CAT5e F/UTP LAN Cable Manufacturers, From the purchasing of raw materials to production, inspection, packing and shipment, all stages are strictly controlled in order to fully guarantee the quality, strive to make every effort to be perfect.

CommSpace has advanced laboratory and testing equipment, a strong and rigorous Quality Assurance Department, a complete set of ERP and barcode traceability system, which are conductive to ensuring quality and enhancing customer satisfaction and trust.

CommSpace Cable is committed to providing customers with reliable and comprehensive communication cable solutions through our professional technical team, flexible design practice, precise manufacturing, strict quality control, rich logistics experience, continuous on-site support and superior service.
