1. CAT5e CAT6 Cables: High-Speed Networking Solutions
CAT5e and CAT6 cables are essential components of modern networking infrastructure, offering reliable and high-speed data transmission capabilities. These cables are widely used in various applications, ranging from home networks to large-scale enterprise setups.
CAT5e (Category 5e) cables provide enhanced performance compared to their predecessor, CAT5 cables. They are designed to support data transfer rates of up to 1 gigabit per second (Gbps) over short to medium distances. CAT5e cables are suitable for most residential and small to medium-sized business networks, offering cost-effective and reliable connectivity.
CAT6 (Category 6) cables, on the other hand, offer even higher performance and bandwidth. With improved shielding and tighter tolerances, CAT6 cables can support data transfer rates of up to 10 Gbps over shorter distances. They are ideal for demanding applications, such as high-definition video streaming, data centers, and enterprise networks.
2. UTP FTP SFTP Cables: Understanding Shielding Options
UTP (Unshielded Twisted Pair), FTP (Foiled Twisted Pair), and SFTP (Shielded Foiled Twisted Pair) cables differ in terms of their shielding capabilities, providing varying levels of protection against external interference.
UTP cables are the most common type of LAN cables. They consist of twisted pairs of insulated copper wires and do not have additional shielding. While UTP cables offer cost-effective and flexible solutions, they are more susceptible to electromagnetic interference (EMI) and crosstalk.

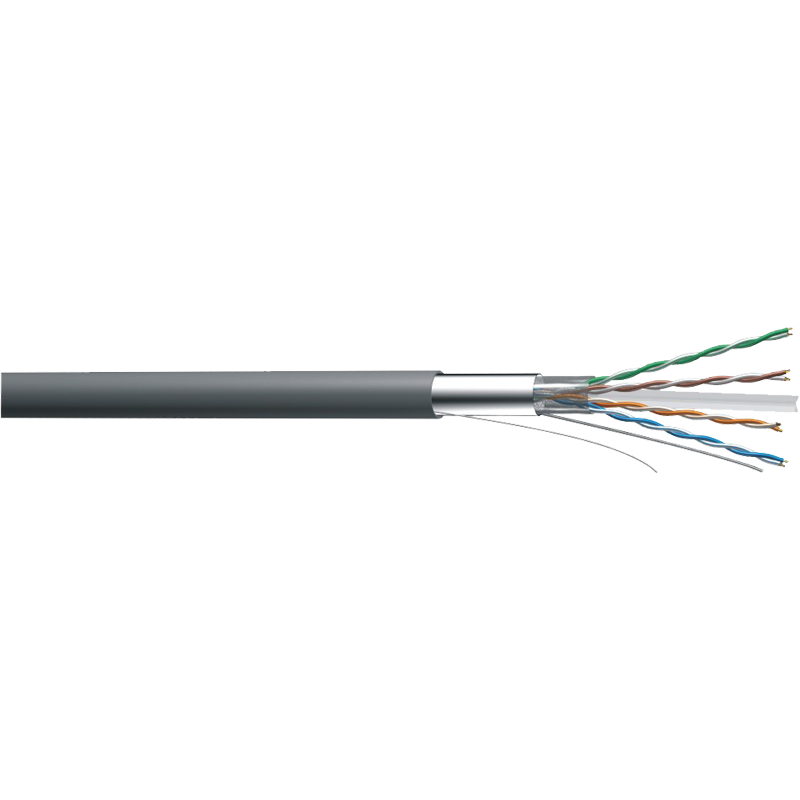

FTP cables feature a foil shield that wraps around the twisted pairs, providing some level of protection against EMI. The foil shielding helps reduce the impact of external electromagnetic signals, improving overall signal quality and reducing crosstalk. FTP cables are suitable for environments with moderate levels of interference.

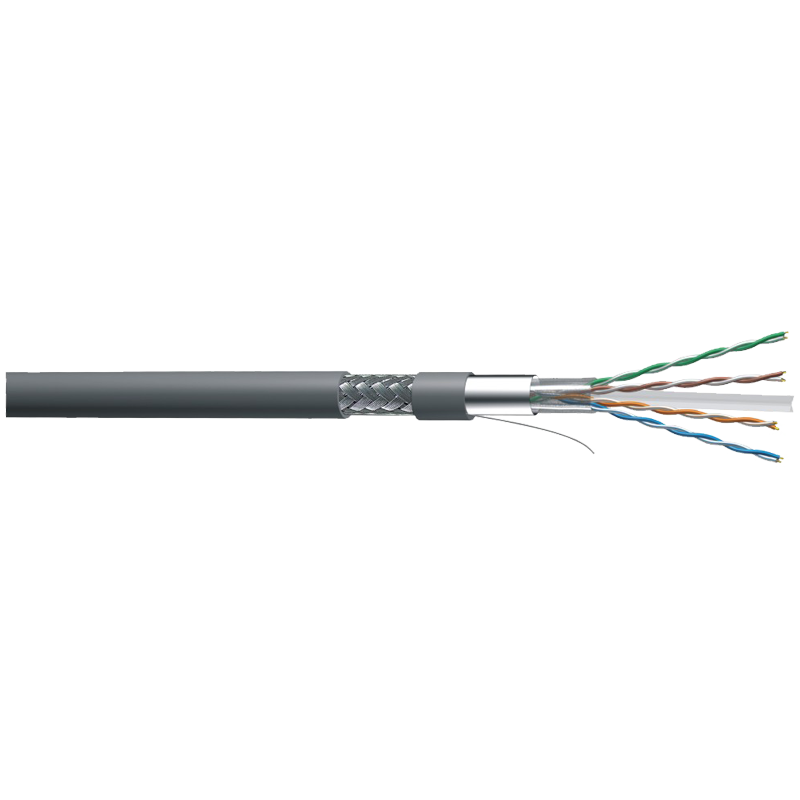

SFTP cables offer the highest level of shielding. They feature both foil shielding and an additional braided shield. The combination of foil and braided shielding provides excellent protection against EMI and ensures minimal signal degradation. SFTP cables are commonly used in environments with high levels of electromagnetic interference, such as industrial settings or areas with dense network traffic.
When selecting LAN cables, several factors need to be considered to ensure optimal performance and compatibility with the intended network infrastructure.
Network Requirements: Evaluate the specific requirements of your network in terms of bandwidth, data transfer speeds, and distance limitations. CAT6 cables are generally recommended for high-performance networks, while CAT5e cables are suitable for more standard applications.
Environmental Factors: Consider the environment in which the LAN cables will be installed. If the area is prone to electromagnetic interference, opting for FTP or SFTP cables can provide better signal quality and reliability.
