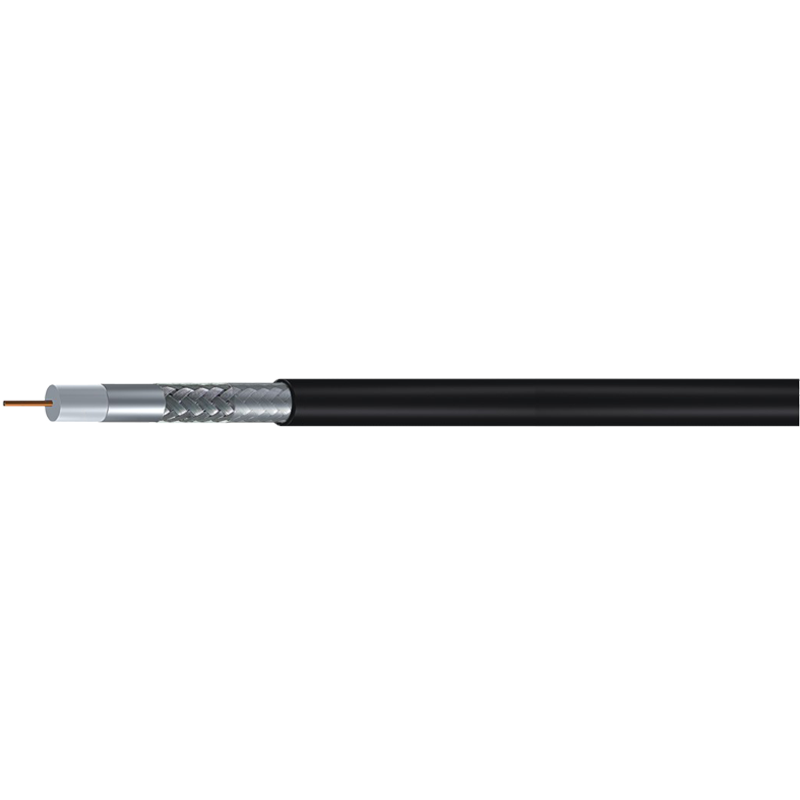

17VATCA 17VATC 17VRTC Class A CPR Satellite TV Coaxial Cable

Quote Now

Specification

Physical Construction and Dimensions

No.	Item	Material	Notes
❶	Center Conductor	Copper Clad Steel or Solid Copper	1.13mm±1%
❷	Dielectric	Gas Injected Foam PE	4.8mm Nominal
❸	1^st Shield	Aluminum Laminated Tape	18%-35% Overlap
❹	2^ndShield	Aluminum or Copper or Tinned Copper Braid Wire	35%-90% Coverage
❺	Anti-migration Foi	PET Transparent	18%-35% Overlap
❻	Jacket	PVC	6.8±0.2mm

Mechanical and Environmental Characteristics

Center Conductor Bond to Dielectric ≥		2.3kg
Operating Temperature		-40°C~80°C

Electrical Characteristics

Maximum DC Resistance of Center Conductor@20°C	89/18 Ω/km
Dielectric Strength	AC 1.5 kV/min
Minimum Insulation Resistance	10000MΩ x km
Nominal Velocity of Propagation	85%
Capacitance	52±2 pF/m
Impedance	75±3 Ω
Structural Return Loss
5-470MHz ≥	23 dB
470-1000MHz ≥	20 dB
1000-2000MHz ≥	18 dB
2000-3000MHz ≥	16 dB
Transfer Impedance
5-30MHz ≤	5 mΩ/m
Screening Attenuation
30-1000MHz ≥	85 dB
1000-2000MHz ≥	75 dB
2000-3000MHz ≥	65 dB

Attenuation @ 20°C

Frequency(MHz)	Max Value(dB/100m)
5	1.50
10	2.10
30	3.60
50	4.40
200	8.20
300	10.10
470	12.80
862	17.80
1000	19.20
1750	25.70
2150	29.10
2400	30.70
3000	35.00

Certificates & Honor

Our products have UL, ETL, JIS, CE, CPR, RoHS and REACH certification
